In this article I will explain with an example, how to implement Three Tier Architecture in ASP.Net Core (.Net Core 6.0).


Database
I have made use of the following table Customers with the schema as follows.
Implement Three Tier Architecture in.Net Core 6.0

I have already inserted few records in the table.
Implement Three Tier Architecture in.Net Core 6.0

Note: You can download the database table SQL by clicking the download link below.
         Download SQL file


What is Three Tier Architecture?
Three Tier Architecture means, dividing a project into 3 layers i.e. Data Access Layer, Business Layer and the UI (Front End) Layer.
Implement Three Tier Architecture in.Net Core 6.0

The benefit of the Three Tier Architecture is that these tiers are developed and maintained independently.
So it will not impact the others in case of any modification.
It improves the performance and scalability of the application.


Data Transfer Object
This layer is used to define the properties. It is used to transfer data between itself and the front end layer.
It does not contain any logic and it is only used to hold data.
In order to add Data Transfer Object project, select File from the menu and click Add, then New Project.
Implement Three Tier Architecture in.Net Core 6.0

From the Add a new project dialog window, select Class Library and click Next.
Implement Three Tier Architecture in.Net Core 6.0

Then, give a suitable Project Name i.e. DTO and click Next.
Implement Three Tier Architecture in.Net Core 6.0

Then, select the Framework i.e. .NET 6.0 (Long Term Support) and click Create.
Implement Three Tier Architecture in.Net Core 6.0

Once the project is created, we need to now create the Data Transfer Object (DTO) class for each Table. For example, to handle operations of Customers Table we are creating Customer class.
The class will contain properties with names similar to the Customers Table. This is necessary as it will be used to load the appropriate fields in appropriate properties i.e. CustomerId will be loaded in CustomerId property.
namespace DTO
{
    ///<summary>
    /// Customer Data Transfer Object.
    ///</summary>
    public class Customer
    {
        public int CustomerId { get; set; }
        public string Name { get; set; }
        public string Country { get; set; }
        public DateTime BirthDate { get; set; }
        public int Age { get; set; }
    }
}


Data Access Layer (DAL)
Data Access Layer (DAL) is used to retrieve data from data store (database) separate from Business Layer (BL) and Front End (UI) layer.
Thus, if you have to change data stores, you don't have to rewriting the whole code again.
In order to add DAL, select File from the menu and click Add, then New Project.
Implement Three Tier Architecture in.Net Core 6.0

From the Add a new project dialog window, select Class Library and click Next.
Implement Three Tier Architecture in.Net Core 6.0

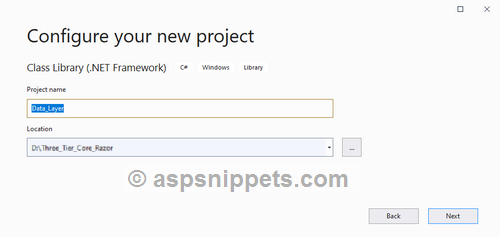

Then, give a suitable Project Name i.e. Data_Layer and click Next.
Implement Three Tier Architecture in.Net Core 6.0

Then, select the Framework i.e. .NET 6.0 (Long Term Support) and click Create.
Implement Three Tier Architecture in.Net Core 6.0

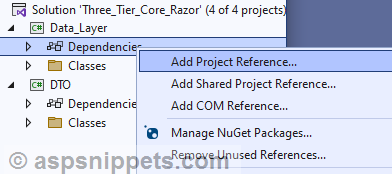

In order to use the DTO classes in the DAL project, you need to add the reference of DTO project to the DAL project. For that right click on the Dependencies, then click on Add Project Reference.
Implement Three Tier Architecture in.Net Core 6.0

Now select the Project node and check the DTO CheckBox and click OK.
Implement Three Tier Architecture in.Net Core 6.0

Now we will create a new class in the DAL project i.e. Helper class, which will be used to keep all the necessary methods for Database operations.
Note: In order to use System.Data.SqlClient in Class Library project in .Net 6.0, you need to install it from Nuget. For more details please refer my article Install Nuget Package in Class Library project using Visual Studio.

Helper Class

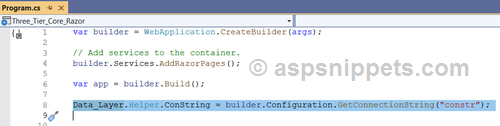

The Connection String to the database will be set at runtime in the Program.cs class of the Front End project (described later).
The Helper Class consists of following methods.
Private methods
HasColumn: This method is used to check whether a Column exists in the DataRecord.
GetSingleObject: This method is used to read the Column value from SqlDataReader and set into the respective property.
Note: The name of the property in DTO classes and the Database Table must be exact same.

Public methods
The following methods are used by the Business Layer to perform the Database operations. Each of these methods accepts the following parameters.
sql – The query or the stored procedure name.
parameters – Default value null. The parameters to be passed to the query or stored procedure.
isStoredProc – Default value false. Value true means stored procedure.

Execute: Performs ExecuteNonQuery operation and returns rows affected.
GetScalar: Performs ExecuteScalar operation and returns single scalar value.
GetSingle: Performs ExecuteReader operation and returns single row i.e. single object.
GetList: Performs ExecuteReader operation and returns multiple rows i.e. List of objects.
using System.Data;
using System.Data.SqlClient;
using System.Reflection;

namespace Data_Layer
{
    public static class Helper
    {
        //Connection string to the Database.
        public static string ConString = "";

        /// <summary>
        /// Gets Single DTO object.
        /// </summary>
        /// <typeparam name="T">Dynamic object.</typeparam>
        /// <param name="sql">SQL Query.</param>
        /// <param name="parameters">Parameter collection.</param>
        /// <param name="isStoredProc">Boolean value. True if Stored Procedure.</param>
        /// <returns>DTO object.</returns>
        public static T GetSingle<T>(this string sql, Dictionary<string, object> parameters = null, bool isStoredProc = false)
        {
            PropertyInfo[] info = typeof(T).GetProperties();
            object t = Activator.CreateInstance(typeof(T));
            using (SqlConnection con = new SqlConnection(Helper.ConString))
            {
                using (SqlCommand cmd = new SqlCommand(sql, con))
                {
                    cmd.CommandType = isStoredProc ? CommandType.StoredProcedure : CommandType.Text;
                    if (parameters != null)
                    {
                        foreach (var p in parameters)
                        {
                            cmd.Parameters.AddWithValue(p.Key, p.Value);
                        }
                    }
                    con.Open();
                    using (SqlDataReader sdr = cmd.ExecuteReader())
                    {
                        if (sdr.Read())
                        {
                            t = GetSingleObject<T>(sdr);
                        }
                        sdr.Close();
                    }
                    con.Close();
                }
            }

            return (T)t;
        }

        /// <summary>
        /// Gets List of DTO object.
        /// </summary>
        /// <typeparam name="T">Dynamic object.</typeparam>
        /// <param name="sql">SQL Query.</param>
        /// <param name="parameters">Parameter collection.</param>
        /// <param name="isStoredProc">Boolean value. True if Stored Procedure.</param>
        /// <returns>List of DTO objects.</returns>
        public static List<T> GetList<T>(this string sql, Dictionary<string, object> parameters = null, bool isStoredProc = false)
        {
            PropertyInfo[] info = typeof(T).GetProperties();
            List<T> t = new List<T>();
            using (SqlConnection con = new SqlConnection(Helper.ConString))
            {
                using (SqlCommand cmd = new SqlCommand(sql, con))
                {
                    cmd.CommandType = isStoredProc ? CommandType.StoredProcedure : CommandType.Text;
                    if (parameters != null)
                    {
                        foreach (var p in parameters)
                        {
                            cmd.Parameters.AddWithValue(p.Key, p.Value);
                        }
                    }

                    con.Open();
                    using (SqlDataReader sdr = cmd.ExecuteReader())
                    {
                        while (sdr.Read())
                        {
                            t.Add(GetSingleObject<T>(sdr));
                        }
                        sdr.Close();
                    }
                    con.Close();
                }
            }

            return t;
        }

        /// <summary>
        /// Gets Single Scalar value.
        /// </summary>
        /// <param name="sql">SQL Query.</param>
        /// <param name="parameters">Parameter collection.</param>
        /// <param name="isStoredProc">Boolean value. True if Stored Procedure.</param>
        /// <returns>Scalar object.</returns>
        public static object GetScalar(this string sql, Dictionary<string, object> parameters = null, bool isStoredProc = false)
        {
            object t;
            using (SqlConnection con = new SqlConnection(Helper.ConString))
            {
                using (SqlCommand cmd = new SqlCommand(sql, con))
                {
                    cmd.CommandType = isStoredProc ? CommandType.StoredProcedure : CommandType.Text;
                    if (parameters != null)
                    {
                        foreach (var p in parameters)
                        {
                            cmd.Parameters.AddWithValue(p.Key, p.Value);
                        }
                    }
                    con.Open();
                    t = cmd.ExecuteScalar();
                    con.Close();
                }
            }

            return t;
        }

        /// <summary>
        /// Executes query.
        /// </summary>
        /// <param name="sql">SQL Query.</param>
        /// <param name="parameters">Parameter collection.</param>
        /// <param name="isStoredProc">Boolean value. True if Stored Procedure.</param>
        /// <returns>Rows affected.</returns>
        public static int Execute(this string sql, Dictionary<string, object> parameters = null, bool isStoredProc = false)
        {
            int rowsAffected = 0;
            using (SqlConnection con = new SqlConnection(Helper.ConString))
            {
                using (SqlCommand cmd = new SqlCommand(sql, con))
                {
                    cmd.CommandType = isStoredProc ? CommandType.StoredProcedure : CommandType.Text;
                    if (parameters != null)
                    {
                        foreach (var p in parameters)
                        {
                            cmd.Parameters.AddWithValue(p.Key, p.Value);
                        }
                    }
                    con.Open();
                    rowsAffected = cmd.ExecuteNonQuery();
                    con.Close();
                }
            }

            return rowsAffected;
        }

        /// <summary>
        /// Reads data from DataReader.
        /// </summary>
        /// <typeparam name="T">Dynamic object.</typeparam>
        /// <param name="sdr">SqlDataReader object</param>
        /// <returns>DTO object.</returns>
        private static T GetSingleObject<T>(this SqlDataReader sdr)
        {
            PropertyInfo[] info = type of(T).GetProperties();
            object t = Activator.CreateInstance(type of(T));

            foreach (PropertyInfo field in info)
            {
                if (sdr.HasColumn(field.Name))
                {
                    field.SetValue(t, sdr[field.Name]);
                }
            }

            return (T)t;
        }

        /// <summary>
        /// Checks whether Column present in DataRecord.
        /// </summary>
        /// <param name="dr">DataRcord object.</param>
        /// <param name="columnName">Column Name.</param>
        /// <returns>Boolean value.</returns>
        public static bool HasColumn(this IDataRecord dr, string columnName)
        {
            for (int i = 0; i < dr.FieldCount; i++)
            {
                if (dr.GetName(i).Equals(columnName, StringComparison.InvariantCultureIgnoreCase))
                {
                    return true;
                }
            }
            return false;
        }
    }
}

CustomerDL Class
Once the Helper class is complete, we need to now create the Data Layer (DL) class for each Table. For example, to handle operations of Customers Table we are creating CustomerDL class.
This Class consists of following methods.
GetCustomerName
This method accepts the CustomerId as parameter.
Inside this method, the SQL query is generated and the parameter is passed as Dictionary object to the GetScalar method.
Finally, the GetScalar method returns the Customer Name as scalar value.

GetCustomer
This method accepts the CustomerId as parameter.
Inside this method, the SQL query is generated and the parameter is passed as Dictionary object to the GetSingle method.
Finally, the GetSingle method returns single Customer.

GetCustomers
Inside this method, the SQL query is generated and GetList method is called.
Finally, the GetList method returns list of Customers.
using DTO;

namespace Data_Layer
{
    public class CustomerDL
    {
        ///<summary>
        /// Gets Customer Name.
        ///</summary>
        ///<param name="customerId">CustomerId object.</param>
        ///<returns>Customer Name.</returns>
        public static string GetCustomerName(int customerId)
        {
            string sql = "SELECT Name FROM Customers WHERE CustomerId=@CustomerId";

            Dictionary<string, object> parameters = new Dictionary<string, object>();
            parameters.Add("@CustomerId", customerId);
            return sql.GetScalar(parameters).ToString();
        }

        ///<summary>
        /// Gets Customer based on Id.
        ///</summary>
        ///<param name="customerId">CustomerId object.</param>
        ///<returns>Customer object.</returns>
        public static Customer GetCustomer(int customerId)
        {
            string sql = "SELECT CustomerId, Name, Country, BirthDate FROM Customers WHERE CustomerId=@CustomerId";

            Dictionary<string, object> parameters = new Dictionary<string, object>();
            parameters.Add("@CustomerId", customerId);

            Customer customer = sql.GetSingle<Customer>(parameters);
            return customer;
        }

        ///<summary>
        /// Gets all Customers.
        ///</summary>
        ///<returns>List of Customers.</returns>
        public static List<Customer> GetCustomers()
        {
            string sql = "SELECT CustomerId, Name, Country, BirthDate FROM Customers";
            List<Customer> customers = sql.GetList<Customer>();
            return customers;
        }
    }
}


Business Layer (BL)
The Business Layer (BL) act as an intermediate between the Front End Layer and the Data Access Layer.
This layer handles the business logic, business rules as well as calculations.
In order to add BL project, select File from the menu and click Add, then New Project.
Implement Three Tier Architecture in.Net Core 6.0

From the Add a new project dialog window, select Class Library and click Next.
Implement Three Tier Architecture in.Net Core 6.0

Then, give a suitable Project Name i.e. Business_Layer and click Next.
Implement Three Tier Architecture in.Net Core 6.0

Then, select the Framework i.e. .NET 6.0 (Long Term Support) and click Create.
Implement Three Tier Architecture in.Net Core 6.0

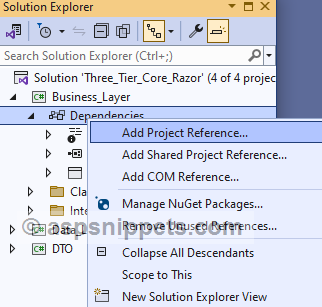

In order to use the DTO classes and Data_Layer classes in the BL project, you need to add their reference to the BL project by right clicking on the Dependencies in the project, then clicking on Add Project Reference.
Implement Three Tier Architecture in.Net Core 6.0

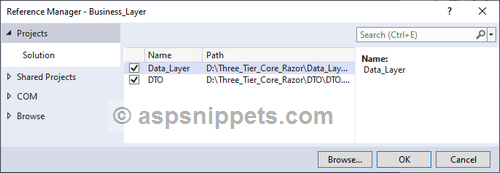

Now select the Projects node and check the Data_Layer and DTO CheckBoxes and click OK.
Implement Three Tier Architecture in.Net Core 6.0

CustomerBL
The following class inherits the ICustomerBL interface.
Inside this class, the implementation of all the methods are written.
Methods:–
GetCustomerName – This method returns name of the Customer based on the CustomerId value.
GetCustomer – This method returns details of Customer based on the CustomerId value.
GetCustomers – This method returns multiple Customers.
Inside GetCustomers method, a FOR EACH loop is executed over the list collection and Age is calculated based on the Current Year and the Birth Year.
using Data_Layer;
using DTO;

namespace Business_Layer
{
    public class CustomerBL : ICustomerBL
    {
        ///<summary>
        /// Gets Customer Name.
        ///</summary>
        ///<param name="customerId">CustomerId object.</param>
        ///<returns>Customer Name.</returns>
        public string GetCustomerName(int customerId)
        {
            return CustomerDL.GetCustomerName(customerId);
        }

        ///<summary>
        /// Gets Customer based on Id.
        ///</summary>
        ///<param name="customerId">CustomerId object.</param>
        ///<returns>Customer object.</returns>
        public Customer GetCustomer(int customerId)
        {
            return CustomerDL.GetCustomer(customerId);
        }

        ///<summary>
        /// Gets all Customers.
        ///</summary>
        ///<returns>List of Customers.</returns>
        public List<Customer> GetCustomers()
        {
            List<Customer> customers = CustomerDL.GetCustomers();

            //Loop and calculate Age from Birth Date.
            foreach (Customer customer in customers)
            {
                customer.Age = (DateTime.Today.Year - customer.BirthDate.Year);
            }

            return customers;
        }
    }
}

Now we will create a new interface in the BL project i.e. ICustomerBL class.
The interface implements following methods of the CustomerBL class.
GetCustomerName
GetCustomer
GetCustomers
using DTO;

namespace Business_Layer
{
    public interface ICustomerBL
    {
        ///<summary>
        /// Gets Customer Name.
        ///</summary>
        ///<param name="customerId">CustomerId object.</param>
        ///<returns>Customer Name.</returns>
        string GetCustomerName(int customerId);

        ///<summary>
        /// Gets Customer based on Id.
        ///</summary>
        ///<param name="customerId">CustomerId object.</param>
        ///<returns>Customer object.</returns>
        Customer GetCustomer(int customerId);

        ///<summary>
        /// Gets all Customers.
        ///</summary>
        ///<returns>List of Customers.</returns>
        List<Customer> GetCustomers();
    }
}


Front End Layer
Front End (UI) Layer will be a Web App project.
In order to add FrontEnd Layer, select File from the menu and click Add, then New Project.
Implement Three Tier Architecture in.Net Core 6.0

From the Create a new project dialog window, select ASP.Net Core Web App and click Next.
Implement Three Tier Architecture in.Net Core 6.0

Then, give a suitable Project Name i.e. Three_Tier_Core_Razor and click Next.
Implement Three Tier Architecture in.Net Core 6.0

Then, select the Framework i.e. .NET 6.0 (Long Term Support) and click Create.
Implement Three Tier Architecture in.Net Core 6.0

In order to use the DTO and BL classes in the UI project, you need to add the reference of DTO and BL projects to the UI project. For that right click on the Dependencies, then click on Add Project Reference.
Implement Three Tier Architecture in.Net Core 6.0

Now select the Projects node and check the DTO and Business_Layer and click OK.
Implement Three Tier Architecture in.Net Core 6.0

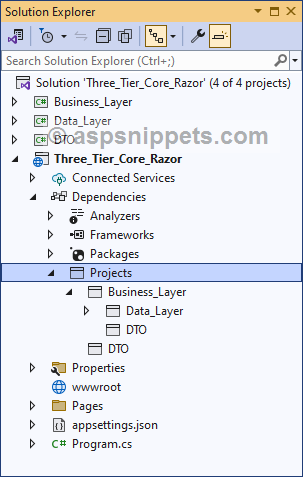

Now, you will see the references has been added to the project inside the Projects folder.
Implement Three Tier Architecture in.Net Core 6.0


Adding the Connection String inside AppSettings.json
The following Connection String setting has been added in the AppSettings.json file.
{
    "ConnectionStrings": { "constr": "Data Source=.\\SQL2019;Initial Catalog=AjaxSamples;User id = sa;password=pass@123" }
}


Setting the Connection String inside Program.cs
The Connection String is set in the Program.cs file by reading the connection string from AppSettings.json file using the GetConnectionString method of Configuration property.
Data_Layer.Helper.ConString = builder.Configuration.GetConnectionString("constr");

Implement Three Tier Architecture in.Net Core 6.0


Namespaces
You will need to inherit the following namespaces.
using Business_Layer;
using DTO;


Razor PageModel (Code-Behind)
The PageModel consists of following Handler method.
Handler method for handling GET operation
Inside this Handler method, an object of CustomerBL is created and the GetCustomerName, GetCustomer and GetCustomers methods are called.
public class IndexModel : PageModel
{
    public void OnGet()
    {
        ICustomerBL customerBL = new CustomerBL();

       //Get single Customer Name.
       string name = customerBL.GetCustomerName(2);

       //Get single Customer data.
       Customer customer = customerBL.GetCustomer(2);

       //Get multiple Customers data.
       List<Customer> customers = customerBL.GetCustomers();
    }
}


Screenshots
Returning Customer Name
Implement Three Tier Architecture in.Net Core 6.0

Returning single Customer
Implement Three Tier Architecture in.Net Core 6.0

Returning multiple Customers
Implement Three Tier Architecture in.Net Core 6.0


Downloads
Download Code
