In this article I will explain with example, how to bind GridView control using Entity Framework in ASP.Net using C# and VB.Net.


Database
Here I am making use of Microsoft’s Northwind Database. You can download it from here.
Download and install Northwind Database


Configuring and connecting Entity Framework to database
First, you need to configure and connect Entity Framework to database.
Note: For more details on how to configure and connect Entity Framework to database, please refer my article Configure Entity Framework Step By Step in ASP.Net.


HTML Markup
The following HTML Markup consists of an ASP.Net GridView control with three BoundField columns.
<asp:GridView ID="gvCustomers" runat="server" AutoGenerateColumns="false">
    <Columns>
        <asp:BoundField DataField="CustomerId" HeaderText="Customer Id" />
        <asp:BoundField DataField="ContactName" HeaderText="Customer Name" />
        <asp:BoundField DataField="Country" HeaderText="Country" />
    </Columns>
</asp:GridView>


Populating GridView control in ASP.Net
Inside the Page Load event handler, the Top 10 records from the Customers table are fetched using Entity Framework and assigned to the DataSource property of the GridView control.
C#
protected void Page_Load(object sender, EventArgs e)
{
    if (!this.IsPostBack)
    {
        using (NORTHWINDEntities entities = new NORTHWINDEntities())
        {
            gvCustomers.DataSource = (from customer in entities.Customers.Take(10)
                                      select customer).ToList();
            gvCustomers.DataBind();
        }
    }
}

VB.Net
Protected Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs) Handles Me.Load
    If Not Me.IsPostBack Then
        Using entities As NORTHWINDEntities = New NORTHWINDEntities()
            gvCustomers.DataSource = (From customer In entities.Customers.Take(10) Select customer).ToList()
            gvCustomers.DataBind()
        End Using
    End If
End Sub

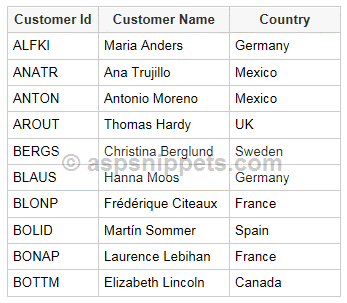

Screenshot
Bind GridView using Entity Framework in ASP.Net
