Could not load file or assembly MicrosoftSqlServerTypes Version11000

In this article I will explain with an example, how to resolve the following error.

Could not load file or assembly 'Microsoft.SqlServer.Types, Version=11.0.0.0, Culture=neutral, PublicKeyToken=89845dcd8080cc91' or one of its dependencies.

Problem

The Microsoft.SqlServer.Types.dll version 11 is required for running RDLC Reports and it is not distributed with newer versions of SQL Server.

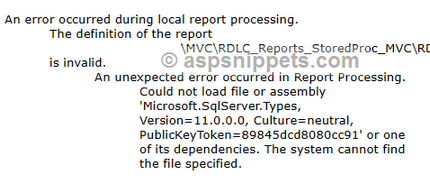

Could not load file or assembly 'Microsoft.SqlServer.Types, Version=11.0.0.0

Hence in order to use RDLC Report, you will need to install the reference of this DLL.

Solutions

Following are the solutions to this problem:

1. Install Microsoft.SqlServer.Types package from Nuget.

2. Download the SQLSysClrTypes version 11.0 Installer File for Microsoft.SqlServer.Types DLL.

Installing Microsoft.SqlServer.Types Version 11 Library

You will need to install the Microsoft.SqlServer.Types package using the following command.

Install-Package Microsoft.SqlServer.Types -Version 11.0.0

Note: For more details on how to install package from Nuget, please refer my article, Install Nuget package in Visual Studio 2017, 2019, 2022.

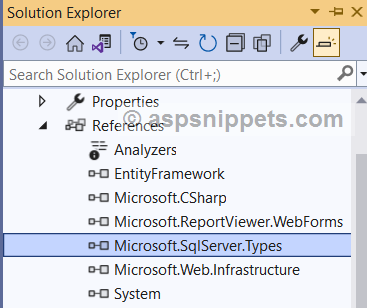

After successful installation, open Solution Explorer and then expand the References folder and look for Microsoft.SqlServer.Types reference.

Now, right click on it and click Properties. And in the Properties window, make sure that the Copy Local property is set to TRUE as shown below.

Downloading SQLSysClrTypes version 11.0 Installer file

You will need to download the SQLSysClrTypes version 11.0 Installer file from the following link.

https://www.microsoft.com/en-in/download/details.aspx?id=56041

Once you visit the page, you need to follow the following steps.

1. First, you need to select language to English and then click on Download button.

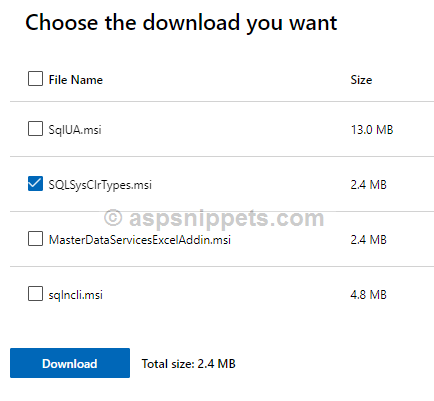

2. Once you click the Download button, it will open a Popup where look for SQLSysClrTypes.msi and select its CheckBox, and then click on the Download button.
