In this article I will explain with an example, how to export SQL data to Excel file with Column Headers (Column Names) in Windows Forms (WinForms) Application using C# and VB.Net.



Install ClosedXML package

In order to install ClosedXML library using Nuget, please refer my article Install ClosedXML Nuget Package.



Database

I have made use of the following table Customers with the schema as follows.
Export SQL data to Excel with Column Headers (Column Names) in Windows Forms

I have already inserted few records in the table.
Export SQL data to Excel with Column Headers (Column Names) in Windows Forms

Note: You can download the database table SQL by clicking the download link below.
            Download SQL file



Form Design

The Form consist of following controls:
Button – For exporting Excel file.
The Button has been assigned with a Click event handler.
Export SQL data to Excel with Column Headers (Column Names) in Windows Forms



Namespaces

You will need to import the following namespaces.
C#
using System.IO;
using System.Data;
using System.Data.SqlClient;
using System.Configuration;
using ClosedXML.Excel;

VB.Net
Imports System.IO
Imports System.Data
Imports System.Data.SqlClient
Imports System.Configuration
Imports ClosedXML.Excel



Creating and downloading Excel file in C# and VB.Net

When the Export Button is clicked, first the connection is read from App.Config file.
Note: For more details on how to read connection string from App.Config, file please refer my article .Net 4.5: Read (Get) Connection String from App.Config file using C# and VB.Net.

Then, the SqlDataAdapter object is initialized with the SqlCommand and using the Fill function, the DataTable is populated with the records from database.
After that, an XLWorkbook class object is created to which the DataTable is added as Worksheet using the Add method which accepts DataTable and the name of the Sheet as parameters.
Finally, using SaveAs method of XLWorkbook, which accepts the file name of Excel file as a parameter which saves the Excel to the specified location.
C#
private void OnExport(object sender, EventArgs e)
{
    string constr = ConfigurationManager.ConnectionStrings["constr"].ConnectionString;
    string sql = "SELECT CustomerId, Name, Country FROM Customers";
    using (SqlConnection con = new SqlConnection(constr))
    {
        using (SqlDataAdapter sda = new SqlDataAdapter(sql, con))
        {
            using (DataTable dt = new DataTable())
            {
                sda.Fill(dt);

                //Exporting to Excel.
                string folderPath = "E:\\Excel\\";
                if (!Directory.Exists(folderPath))
                {
                    Directory.CreateDirectory(folderPath);
                }

                using (XLWorkbook wb = new XLWorkbook())
                {
                    wb.Worksheets.Add(dt, "Customers");
                    wb.SaveAs(folderPath + "Customers.xlsx");
                }
            }
        }
    }
}

VB.Net
Private Sub OnExport(sender As Object, e As EventArgs) Handles btnExport.Click
    Dim constr As String = ConfigurationManager.ConnectionStrings("constr").ConnectionString
    Dim sql As String = "SELECT CustomerId, Name, Country FROM Customers"
    Using con As SqlConnection = New SqlConnection(constr)
        Using sda As SqlDataAdapter = New SqlDataAdapter(sql, con)
            Using dt As DataTable = New DataTable()
                sda.Fill(dt)

                'Exporting to Excel.
                Dim folderPath As String = "E:\Excel\"
                If Not Directory.Exists(folderPath) Then
                    Directory.CreateDirectory(folderPath)
                End If

                Using wb As XLWorkbook = New XLWorkbook()
                    wb.Worksheets.Add(dt, "Customers")
                    wb.SaveAs(folderPath & "Customers.xlsx")
                End Using
            End Using
        End Using
    End Using
End Sub



Screenshots

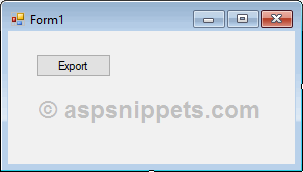

Form

Export SQL data to Excel with Column Headers (Column Names) in Windows Forms


The Excel File

Export SQL data to Excel with Column Headers (Column Names) in Windows Forms



Downloads

Download Code
