In this article I will explain with an example, how to populate (bind) MVC6 Grid using ADO.Net in ASP.Net Core (.Net Core 8) MVC.



MVC6 Grid for ASP.Net Core

This article makes use of MVC6 Grid library for implementing WebGrid, as it is not available by default in .Net Core.
For more details on how to use MVC6 Grid, please refer the article WebGrid Step By Step Tutorial with example in ASP.Net Core MVC.



Database

Here I am making use of Microsoft’s Northwind Database. You can download it from here.
Download and install Northwind Database



Namespaces

You will need to import the following namespaces.
using System.Data;
using System.Data.SqlClient;



Controller

The Controller consists of the following Action method.

Action method for handling GET operation

Inside this Action method, the Top 10 records are fetched from the Customers Table using ADO.Net.
The records are inserted into a DataSet using SqlDataAdapter class object.
Finally, the DataSet is returned to the View.
public class HomeController : Controller
{
    public IActionResult Index()
    {
        string constr = @"Data Source=.\SQL2019;Initial Catalog=Northwind;uid=sa;pwd=pass@123;TrustServerCertificate=True";
        using (SqlConnection con = new SqlConnection(constr))
        {
            string query = "SELECT TOP 10 CustomerID, ContactName, City, Country FROM Customers";
            using (SqlCommand cmd = new SqlCommand(query, con))
            {
                using (SqlDataAdapter sda = new SqlDataAdapter(cmd))
                {
                    using (DataSet ds = new DataSet())
                    {
                        sda.Fill(ds);

                        return View(ds);
                    }
                }
            }
        }
    }
}



View

HTML Markup

Inside the View, in the very first line DataSet is declared as Model for the View.
The System.Data, NonFactors.Mvc.Grid namespaces and mvc-grid.css file are inherited inside the View.
The DataTable is passed to the Grid function of the MVC6 Grid HTML Helper class.
The columns have been added using the Build method of the MVC6 Grid HTML Helper class.
Inside the Build method of the MVC6 Grid HTML Helper class, a foreach loop will be executed over the Columns.
Inside the loop, dynamically columns have been added using the Add method and the Header Text of the column is set using the Titled function by passing the Column Name.
@model DataSet
@using System.Data;
@using NonFactors.Mvc.Grid;

@{
    Layout = null;
}

<!DOCTYPE html>

<html>
<head>
    <meta name="viewport" content="width=device-width" />
    <title>Index</title>
    <link href="~/css/mvc-grid/mvc-grid.css" rel="stylesheet" />
</head>
<body>
    <div style="width: 550px">
        @(Html.Grid(Model.Tables[0].Rows.Cast<DataRow>())
                .Build(columns =>
                {
                    foreach (DataColumn column in Model.Tables[0].Columns)
                    {
                        columns.Add(model => model[column.ColumnName]).Titled(column.ColumnName);
                    }
                })
        )
    </div>
</body>
</html>

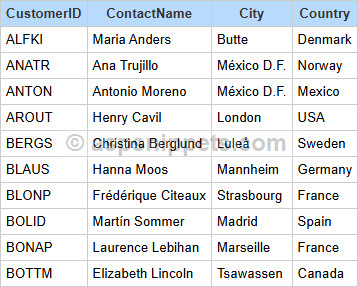

Screenshot

Populate (Bind) MVC6 Grid with ADO.Net in .Net Core



Downloads

Download Code
