In this article I will explain with an example, how to populate (bind) DataSet to GridView using jQuery AJAX in ASP.Net
with C# and VB.Net.
This article will illustrate how to populate GridView control from SQL Server database on Client Side by calling WebMethod using jQuery AJAX in C# and VB.Net.



Database

Here I am making use of Microsoft’s Northwind Database. You can download it from here.
Download and install Northwind Database



HTML Markup

The HTML Markup consists of following controls:
GridView – For displaying data.

Columns

The GridView consists of three BoundField columns.
<asp:GridView ID="gvCustomers" runat="server" AutoGenerateColumns="false">
    <Columns>
        <asp:BoundField DataField="CustomerID" HeaderText="Customer Id" />
        <asp:BoundField DataField="ContactName" HeaderText="ContactName" />
        <asp:BoundField DataField="Country" HeaderText="Country" />
    </Columns>
</asp:GridView>



Binding Dataset to GridView using jQuery AJAX

Inside the HTML, following script file is inherited.
1. jquery.min.js

Inside the jQuery document ready event handler, an AJAX call is made to the WebMethod.
Note: For more details on how to make AJAX call, please refer my article Calling ASP.Net WebMethod using jQuery AJAX.

Inside the OnSuccess JavaScript event handler, the XML string is parsed into an XML document and then a FOR EACH loop is executed for each entry present in the XML.
Inside the FOR EACH loop, the columns of GridView control is cloned and values are set to their respective fields.
<script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/jquery/3.7.1/jquery.min.js"></script>
<script type="text/javascript">
    $(function () {
        $.ajax({
             type: "POST",
             url: "Default.aspx/GetCustomers",
             data: '{}',
             contentType: "application/json; charset=utf-8",
             dataType: "json",
             success: OnSuccess,
             failure: function (r) {
                alert(r.d);
            },
            error: function (response) {
                alert(r.d);
            }
        });
    });

    function OnSuccess(r) {
        //Parse the XML and extract the records.
        var customers = $($.parseXML(r.d)).find("Table");

        //Reference GridView Table.
        var table = $("[id*=gvCustomers]");

        //Reference the Dummy Row.
        var row = table.find("tr:last-child").clone(true);

        //Remove the Dummy Row.
        $("tr", table).not($("tr:first-child", table)).remove();

        //Loop through the XML and add Rows to the Table.
        $.each(customers, function () {
            var customer = $(this);
            $("td", row).eq(0).html($(this).find("CustomerID").text());
            $("td", row).eq(1).html($(this).find("ContactName").text());
            $("td", row).eq(2).html($(this).find("Country").text());
            table.append(row);
            row = table.find("tr:last-child").clone(true);
        });
    }
</script>



Namespaces

You will need to import the following namespaces.
C#
using System.Data;
using System.Data.SqlClient;
using System.Configuration;

VB.Net
Imports System.Data
Imports System.Data.SqlClient
Imports System.Configuration



Binding the GridView

Inside the Page_Load event handler, the GridView is populated with dynamic DataTable.
Note: For more details on how to use dynamic DataTable, please refer my article Dynamically create DataTable and bind to GridView in ASP.Net to GridView in ASP.Net.

C#
protected void Page_Load(object sender, EventArgs e)
{
    if (!this.IsPostBack)
    {
        DataTable dtCustomers = new DataTable();
        dtCustomers.Columns.Add("CustomerID");
        dtCustomers.Columns.Add("ContactName");
        dtCustomers.Columns.Add("Country");
        dtCustomers.Rows.Add();
        gvCustomers.DataSource = dtCustomers;
        gvCustomers.DataBind();
    }
}

VB.Net
Protected Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs) Handles Me.Load
    If Not Me.IsPostBack Then
        Dim dtCustomers As DataTable = New DataTable()
        dtCustomers.Columns.Add("CustomerID")
        dtCustomers.Columns.Add("ContactName")
        dtCustomers.Columns.Add("Country")
        dtCustomers.Rows.Add()
        gvCustomers.DataSource = dtCustomers
        gvCustomers.DataBind()
    End If
End Sub



WebMethod (PageMethod) to handle jQuery AJAX call

Inside the WebMethod, the records are fetched from the Customers Table of the SQL Server database and populates DataSet using SqlDataAdapter.
Finally, DataSet is returned as an XML string.
Note: The following WebMethod is declared as static (C#) and Shared (VB.Net), it is decorated with WebMethod attribute, this is necessary otherwise the method will not be called from client side jQuery AJAX call.

C#
[WebMethod]
public static string GetCustomers()
{
    string constr = ConfigurationManager.ConnectionStrings["constr"].ConnectionString;
    string sql = "SELECT TOP 10 CustomerID, ContactName, Country FROM Customers";
    using (SqlConnection con = new SqlConnection(constr))
    {
        using (SqlDataAdapter sda = new SqlDataAdapter(sql, con))
        {
            using (DataSet ds = new DataSet())
            {
                sda.Fill(ds);
                return ds.GetXml();
            }
        }
    }
}

VB.Net
<WebMethod>
Public Shared Function GetCustomers() As String
    Dim constr As String = ConfigurationManager.ConnectionStrings("constr").ConnectionString
    Dim sql As String = "SELECT TOP 10 CustomerID, ContactName, Country FROM Customers"
    Using con As SqlConnection = New SqlConnection(constr)
        Using sda As SqlDataAdapter = New SqlDataAdapter(sql, con)
            Using ds As DataSet = New DataSet()
                sda.Fill(ds)
                Return ds.GetXml()
            End Using
        End Using
    End Using
End Function

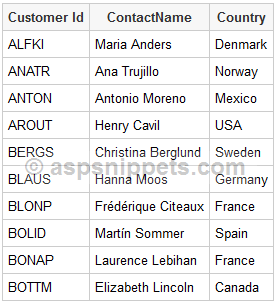

Screenshot

Bind Dataset to ASP.Net GridView using jQuery AJAX



Browser Compatibility

The above code has been tested in the following browsers.
Microsoft Edge   FireFox  Chrome  Safari  Opera
* All browser logos displayed above are property of their respective owners.



Demo

View Demo



Downloads

GridView_jQuery_AJAX_ASP.Net.zip
